Performance and Characteristics:

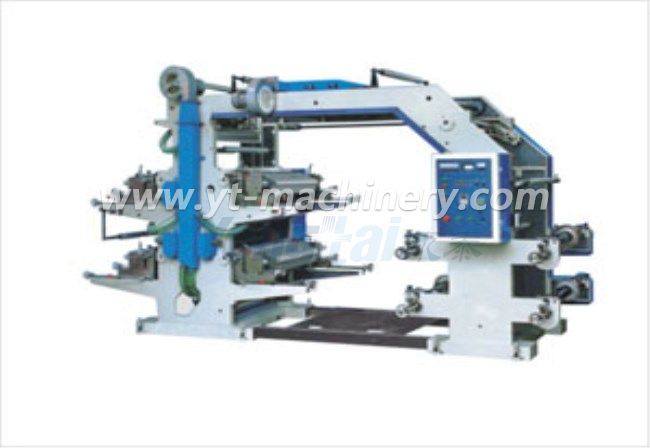

This machine is a soft version of photopolymer printing plates as, commonly known as "aniline printing press." Suitable for printing, non-woven, polyethylene, polypropylene plastic bags, cellophane, Web and other packaging materials, paper packaging for food, supermarket handbag, vest bag, garment bags and other packaging ideal printing equipment.


1.Easy operation, flexible starting, accurate color register
2.meter counter can set printing quantity according to the requirements, the number of 3. Automatic shutdown, automatic stop-off material
4.Pneumatic printing cylinder, automatic mixing ink after lifting.
textured rollers transfer ink, ink evenly.
5
.Reliable drying system coordinated with high-speed operation, automatic shutdown circuit.
6
.360 degrees longitudinal register device continuously adjustable.
7
. frequency control, adapt to different printing speeds.
8
. edition roll carts and shelves are loaded little action and stop buttons, easy to operate the machine when installed version.












Dados técnicos

Technical data

机型

Model

YT-4600

YT-4800

YT-41000

最大印料宽度

The maximum width of printed material

600mm

800mm

1000mm

最大印刷宽度

The maximum printing width

560mm

760mm

960mm

印刷品长度范围

Print length

191-914mm

191914mm

191914mm

卷材最大直径

The maximum diameter of the coil

ф450mm

ф450mm

ф450mm

印刷速度

Printing speed

5~50m/min

550m/min

550m/min

版材厚度(包括双面胶袋)

Plate thickness (including double-sided plastic bags

2.38mm

2.38mm

2.38mm

总功率

Total power

10.87Kw

12.5 Kw

14.37Kw

机器重量

Weight

3000kg

3500 kg

4000 kg

外形尺寸

Dimensions

4200×1600×2400mm

4200×1600×2400mm

4200×1600×2400mm
